    Assembly Type Hyundai Car Alternator S4 Pulley Class Aluminum Material Made

    Ask Lasest Price
    Brand Name : DNINSS
    Model Number : 1906
    Certification : 3C,ISO16949
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 30000pcs/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Assembly Type Hyundai Car Alternator S4 Pulley Class Aluminum Material Made

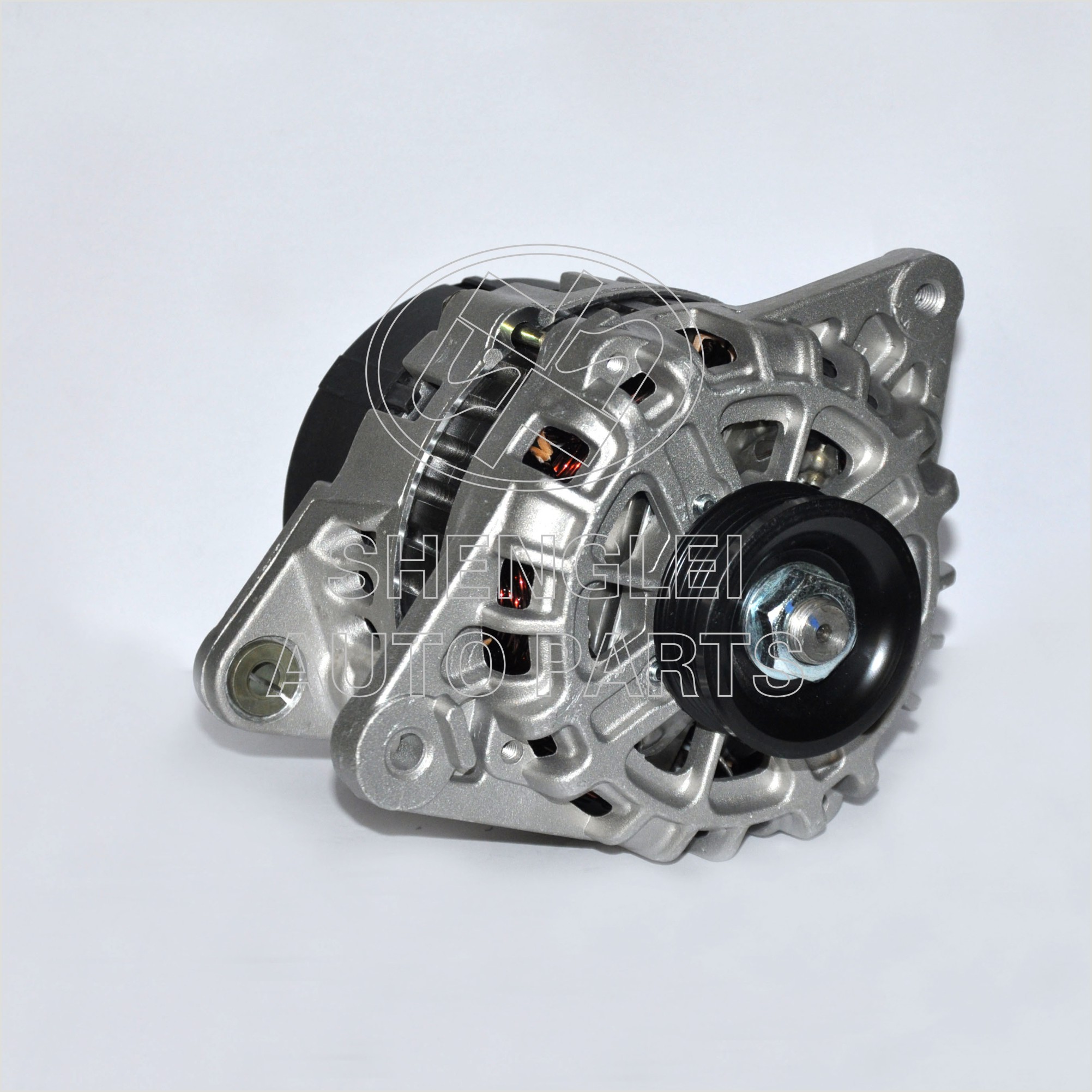

    Hyundai Mando Elantra (13839 3730022600 12V 90A) Aluminum Car Alternator

    Used for :
    HYUNDAI ACCENT 1.5L 2000-02
    HYUNDAI ACCENT 1.6L 2001-02
    HYUNDAI ELANTRA 2.0L 2001-02
    KIA SPECTRA 2.0L 2007
    KIA SPORTAGE 2.0L 2007
    ALSO EUROPEAN APPS AS FOLLOWS:
    HYUNDAI ACCENT 1.3L, 1.5L 1999-ON
    HYUNDAI COUPE 2.0L 16V 2001-ON
    HYUNDAI ELANTRA 1.6L, 1.8L 2.0L 16V 2000-ON
    HYUNDAI MATRIX 1.6L, 1.8L 2001-ON
    4-GROOVE PULLEY


    Features:
    Ensures cranking and starting performance under all temperature extremes100% full-load tested - meets or exceeds OE manufacturers' torque, amperage draw and RPM standardsEnsures stable voltage output, eliminates shorts and open circuitsProvides unsurpassed reliability under extreme conditionsOE design to ensure exact fit, form, and functionTested in an endurance simulaor to ensure OE quality and functionProduction Line

    1. specification

    Unit TypeAlternator
    Part TypeUNIT
    Voltage12
    RotationCW
    Amperage90
    Pulley ClassS4
    RegulatorIR
    Fan TypeIF
    ManufacturerMANDO
    BriefHYUNDAI ACCENT 1.5L 2000-02
    HYUNDAI ACCENT 1.6L 2001-02
    HYUNDAI ELANTRA 2.0L 2001-02
    KIA SPECTRA 2.0L 2007
    KIA SPORTAGE 2.0L 2007
    ALSO EUROPEAN APPS AS FOLLOWS:
    HYUNDAI ACCENT 1.3L, 1.5L 1999-ON
    HYUNDAI COUPE 2.0L 16V 2001-ON
    HYUNDAI ELANTRA 1.6L, 1.8L 2.0L 16V 2000-ON
    HYUNDAI MATRIX 1.6L, 1.8L 2001-ON
    4-GROOVE PULLEY
    ADDL INFO: "
    S-L"
    PLUG
    ADDL INFO: 8mm B+ STUD
    SEARCH: 486867 (EARLIER UNIT-MAY INTCHG)
    SEARCH: 486864 (90 AMP REPLACEMENT)
    DetailedThis is an 80A Mando Alternator for the 2000-02 Hyundai Accent. This Unit Has a Standard S-L Plug at About 9:00 the B+ Stud at 8:00 and a 4-Groove Pulley. This Unit Looks Much Like the 13702 Used Earlier With Some Minor Appearance Differences. It is Quite Possible That the Two Units Would Interchange as Long as the Pulleys Align Properly. Hyundai TSB #03-36-002 Dated March 2003 States That Hyundai Has Replaced the 80A 13839 With the 90A 13973 On 2003-On Models and May Also Supply This Unit in Place of the 13839.


    2. reference
    MFG#MFG NAME

    AMN0019ARROWHEAD
    13839LESTER
    203-302PIC
    13839BBB
    13839BBB NEW
    N13839BBB NEW
    186-0954BECK ARNLEY
    111309CARGO
    A-8937DIXIE
    13839NEMS
    10573EXCEL
    37300-22600HYUNDAI
    A13839IAT
    400-46012J & N
    LRA02136LUCAS ELECTRICAL EUROPE
    AB180128MANDO
    13839MPA
    13-9438NAPA
    1N-9438NAPA POWER NEW
    213-9438NAPA POWER PREMIUM PLUS
    13-9438NAPA POWER SUPREME
    ALT-3022NSA
    AL-13839RCP
    A2839USA INDUSTRIES
    TA000A39101VALEO
    600044VALEO NEW
    429101WAGNER
    1-2378-01MDWAI
    90-31-7015WILSON
    90-31-7015WILSON NEW
    90-31-7015NWILSON NEW
    ALT3022WOOD AUTO
    12242WORLDWIDE


    3. Vehicle Application
    MAKETYPEMODELYEARENGINE

    HYUNDAIAuto and Light TruckACCENT20001.5L
    HYUNDAIAuto and Light TruckACCENT20011.5L
    HYUNDAIAuto and Light TruckACCENT20011.6L
    HYUNDAIAuto and Light TruckACCENT20021.5L
    HYUNDAIAuto and Light TruckACCENT20021.6L
    HYUNDAIAuto and Light TruckELANTRA20012.0L
    HYUNDAIAuto and Light TruckELANTRA20022.0L
    AEP NumberAEP (OEM)PART TYPE
    BRG0005ND949100-2250BEARING - ROLLER
    AVA1604COVER - RECTIFIER
    PLUG CODE
    AMN1203RECTIFIER
    AMN6011REGULATOR w/BRUSHES
    AMT9110SEAL - RUBBER - B/H TO COVER
    AMN3501SLIP RING
    AMN4003STATOR
    ADR9232TEST LEAD
